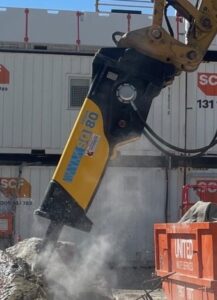

Soosan SQ Series Breakers

The latest product to come out of the Soosan factory is the revolutionary new SQ Series breaker. This modern breaker is a culmination of more than 2 decades of planning and experience. Its innovative design includes a superior oil and gas percussion mechanism combined with less working components, making it incredibly efficient and easy to maintain. The auto shut off function (anti-blank hammering) also gives the user total control, and allows you to select between high frequency/normal power and low frequency/extra power, making it as effective as it is adaptable.

Product Features

  • Highest power to weight ratio
  • Narrow profile with a robust structure
  • Improved vibration dampening and sound suppression system
  • Fully enclosed housing and dust protector
  • Auto shut off and easy start function
  • Locking device for the tie nut bolt
  • Models available with operating weights from 1263kg up to 5850kg for carriers from 15 up to 60 tonnes
View of quality products by SOOSAN

Available Models

Model SQ60 SQ70 SQ80 SQ100 SQ120 SQ130 SQ140 SQ150 SQ180
Operating weight 1263 16620 2013 2185 2510 3033 3169 3950 5850 kg
Height 2604 2670 2801 2918 3194 3337 3351 3575 3709 mm
Oil flow 90-120 100-150 120-180 150-210 180-240 200-260 200-260 210-290 300-400 l/min
Operating pressure 150-170 160–180 160-180 160-180 160-180 160-180 160-180 160-180 160-180 Kg/cm²
Impact rate 600-850 500-850 500-700 430-580 430-580 380-550 300-500 320-470 300-400 BPM
85dB(A) radius 10-18 16-22 16-22 21-30 26-35 35-40 35-40 38-45 38-45 m
Hose diameter 25 25 25 25 32 32 32 32 32 mm
Rod diameter 125 135 140 150 155 165 165 175 197 mm
Applicable carrier weight 15-18 16-21 18-26 25-30 28-35 30-45 36-50 40-55 50-90 ton

Soosan's unique Integrated Power Control (IPC) valve provides total control
